| Project | Parameter |
|---|---|
| Name | Motawill 12v 200ah lithium battery |
| Nominal Voltage | 12.8V |
| Nominal Current | 200Ah |
| Nominal Capacity | 2560Wh |
| Series | 4 |
| Parallel | 4 |
| Size: (length × width × height) | 522x240x218mm / 20.6x9.5x8.6in |
| Weight | 21Kg/46.3Lbs |
| Cycle Life | ＞4000cycle (0.2C,25℃,90%DOD) |
| Ingress Protection Rating (IP65＞IP55) | IP65 (Highest level of protection from dust, protection from low pressure water spraying for 3 minutes） |
| Standard Charge Voltage | 14.6±0.2V |
| Standard Charge Current | 20A，5℃(41℉)＜ @T ＜55℃(131℉) |
| Allowed Max. Charge Current | 100A，5℃(41℉)＜ @T ＜55℃(131℉) |
| Standard Discharge Current | 100A，-15℃(5℉)＜ @T ＜70℃(158℉) |
| Allowed Max. Continuous Discharge Current | 150A，-15℃(5℉)＜ @T ＜70℃(158℉) |
| Allowed Max. Pulse Discharge Current（long pulse） | 200A，@T＜3min or @T ＜70℃(158℉) |
| Allowed Max. Pulse Discharge Current（short pulse） | 300A，@T＜3s or @T ＜70℃(158℉) |
| Storage Temperature | 5℃(41℉)＜ @T ＜55℃(131℉) |
| Terminal | M8(The overcurrent capacity of the plug exceeds the battery capacity by 1.5C) |
| Package | Dangerous Goods Packaging Certificate |
| Battery Ceryifications | UN38.3（Battery）、Msds（Battery）、ios9001 (Brand Certification), etc |
| Insurance | Product liability insurance |

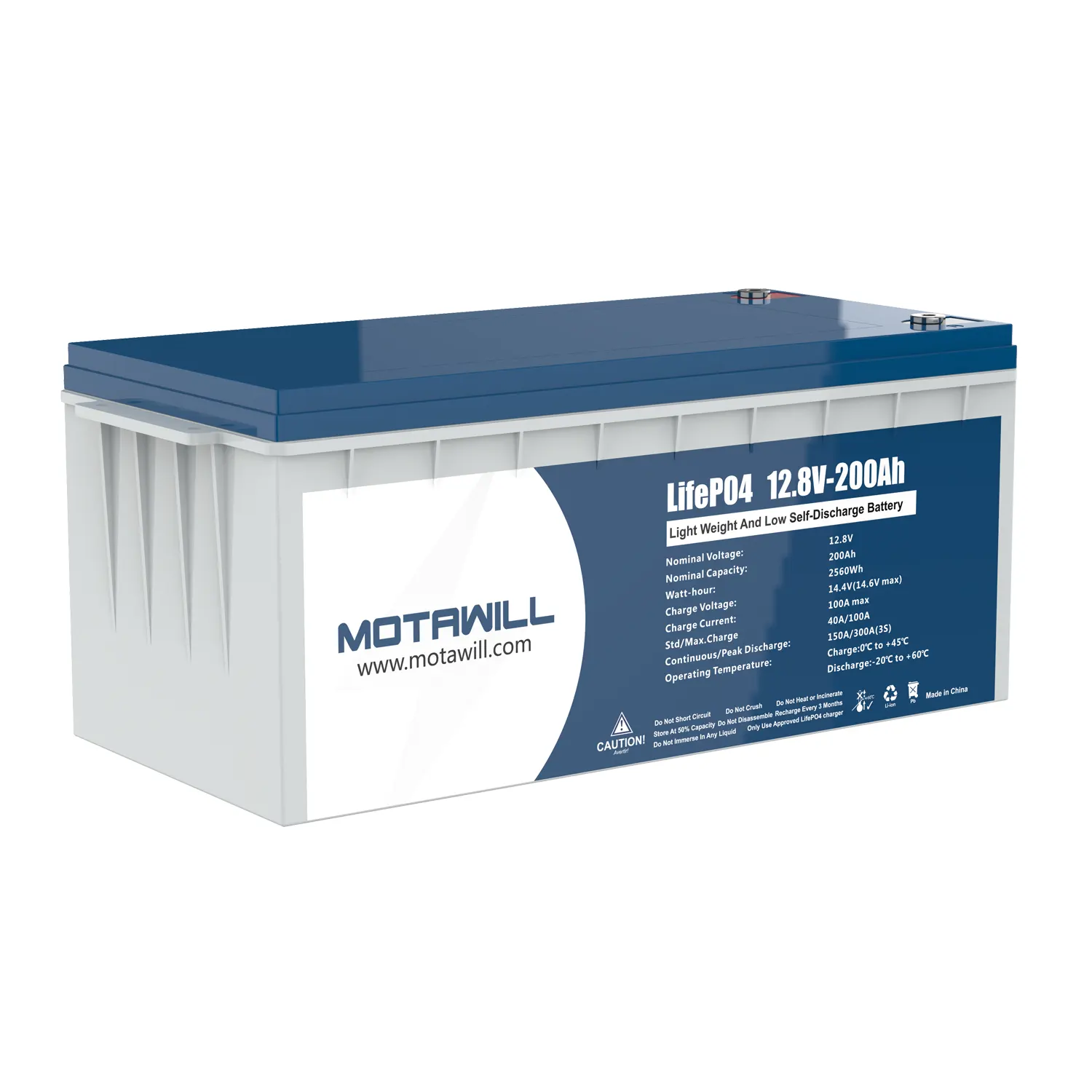

Motawill 12v 200ah lithium battery
$969.99
【High Quality】Motawill 12v 200ah lithium battery has complete third-party certificates, UN38.3, MSDS, hazardous packaging certificate, etc. It is composed of brand-new A-grade cells from the top 5 manufacturers at home and abroad. It provides a 10-year warranty and promises 4,000 times cycle.
【Seismic Resistance】After the Motawill 12v 200ah lithium battery is fully charged, it is fixed on a vibration table in a large plane direction for a seismic test. After completing the test and leaving it for 1 hour, the casing does not deform and does not shift when it shakes up and down. The battery pack does not leak or leak. Fire, no explosion.
【BMS Efficient Protection】Motawill 12v 200ah lithium battery has an excellent BMS protection system to prevent it from overvoltage or undervoltage, overcurrent, high temperature or short circuit.
【Various application scenarios】Can be used in vans, RVs, camping, emergency power supplies, trolling motors, yachts, golf carts, farm power, air compressors, airplanes, dry cleaning machines, outdoor audio, 3D printer power supplies, etc.
【IP65 Level Protection】Motawill 12v 200ah lithium battery has IP65 level protection, level 6 dustproof, level 5 waterproof, and 3-minute low-pressure water spray protection.
Chelsea Turner –
So far so good
Came well packaged and was fully charged. It’s functioning well so far, much lighter than I expected. Have emailed the vendor a few times with questions, and have gotten a response withion 24 hours. Have not been able to fully test the low temperature charging feature,It works great!
